Hydraulic Tunnel Thruster CT HYD 550
Home →
- Description
- Images
- Drawings
- Documents
- 3D Models

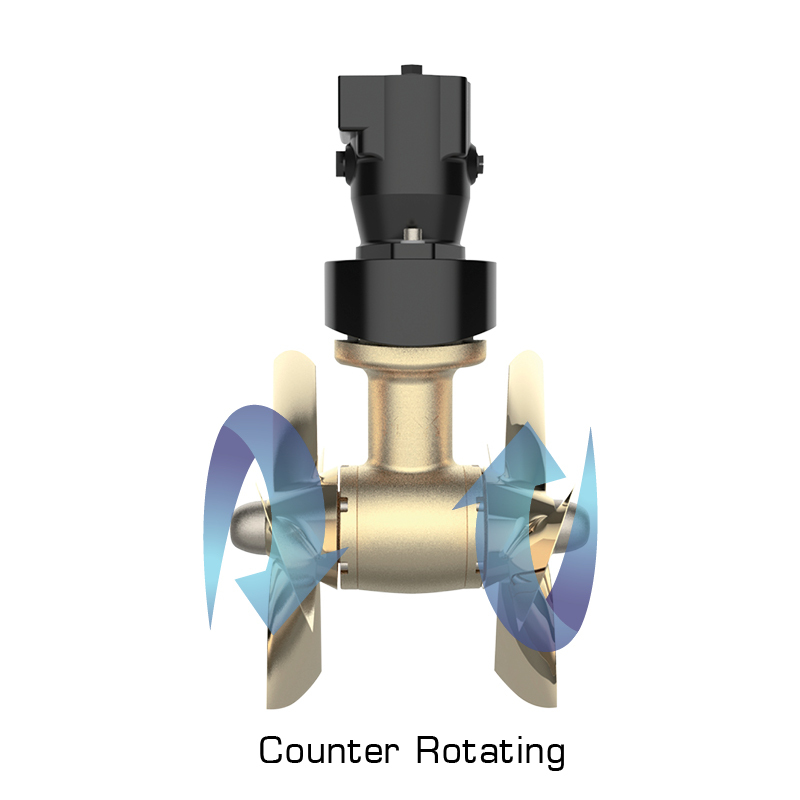

CT550 is ready to enlarge the range of MAX POWER Tunnel Thrusters for boats up to 45m. All parts that are in the water are designed with best hydrodynamic profile to avoid turbulence. It is the most powerful tunnel thruster in D400 tunnel size with 4 blade propellers in metallic material to guarantee maximum thrust performance. Counter rotating system offers higher efficiency on thrusting with left side and right side pitch props in order to have same results in both directions

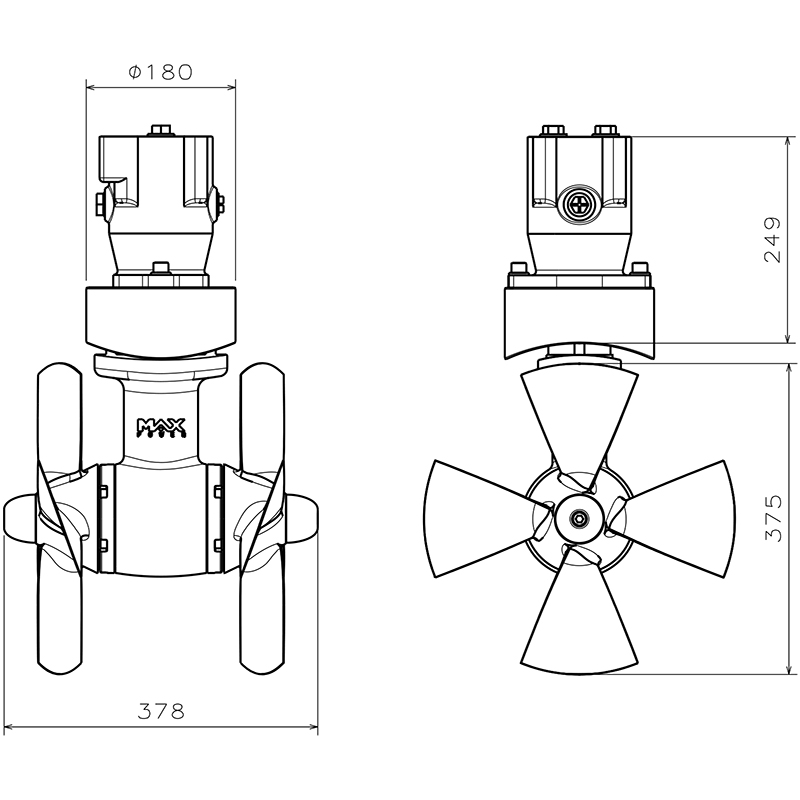

| Code | Thruster Power (kw) | Motor displacement (cc) | Tunnel diameter (mm) | Pressure (BAR) | Flow (LPM) | Propellers | Weight | Light Duty Thrust (Kgf) | Heavy Duty Thrust (Kgf) | Application (Boat Size - m) | A | B | C | D |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 636211 | Min 46 - Max 49 | 47.10 | 400 | Min 200 - Max 210 | 140 | Four Blade, DUO Counter Rotating | 65 | 630 | 560 | 19-42 | 180mm | 378mm | 249mm | 375mm |
