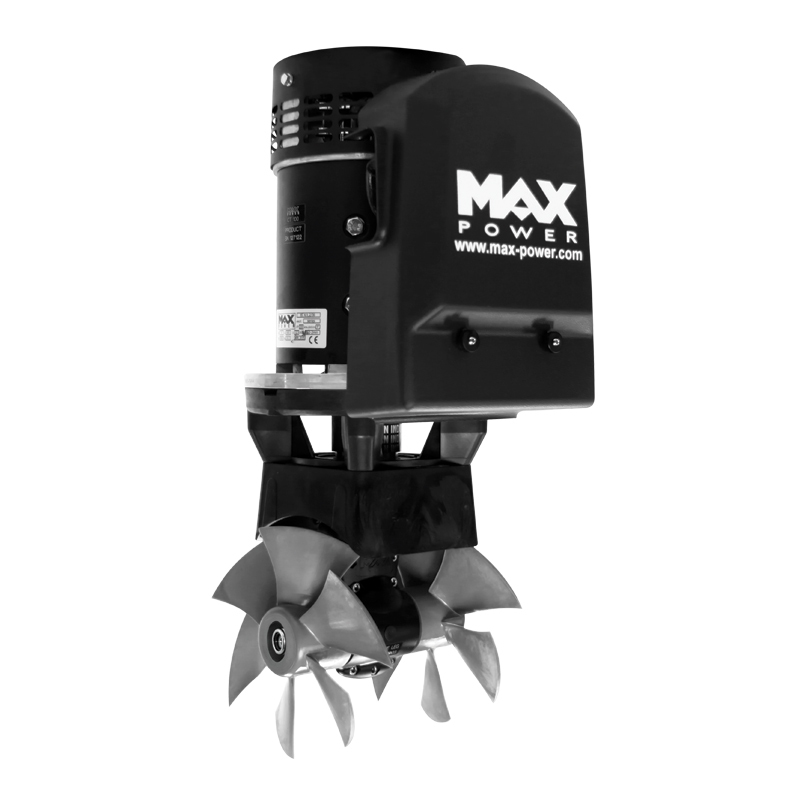

The 12V, twin propeller CT100 suits a wide range of motor boats and deep footed sailing yachts ranging from 30’-53’. This composite thruster has a tunnel diameter of 185mm and a thrust rating up to 90/198 (kg/lbs).
The CT100, like all Max Power electric tunnel thrusters, is maintenance free, benefits from a long lifespan and integrates all the unique features of this range
• Patented composite drive legs
• Zero maintenance
• Case hardened spiro-conical gears
• Line shields
• Purpose-built DC motors
• Electronic control boxes for unrivaled safety features
• Safe, high-power connections
• Purpose-built DC contactors with high specifications
* Thrusters are designed to run at 10.75V on 12V units and 22V on 24V units. Higher voltages will result in higher thrust ratings, higher power consumption, and a reduced duty cycle.
* Performance data is given for a thruster installed at an immersion depth of one tunnel’s diameter, in a tunnel no longer than twice the tunnel’s diameter, and this within a variation of + / - 6%. Longer tunnels will result in lower thrust ratings and higher power consumption.
* Performance data is given for a thruster installed at an immersion depth of one tunnel’s diameter, in a tunnel no longer than twice the tunnel’s diameter, and this within a variation of + / - 6%. Longer tunnels will result in lower thrust ratings and higher power consumption.

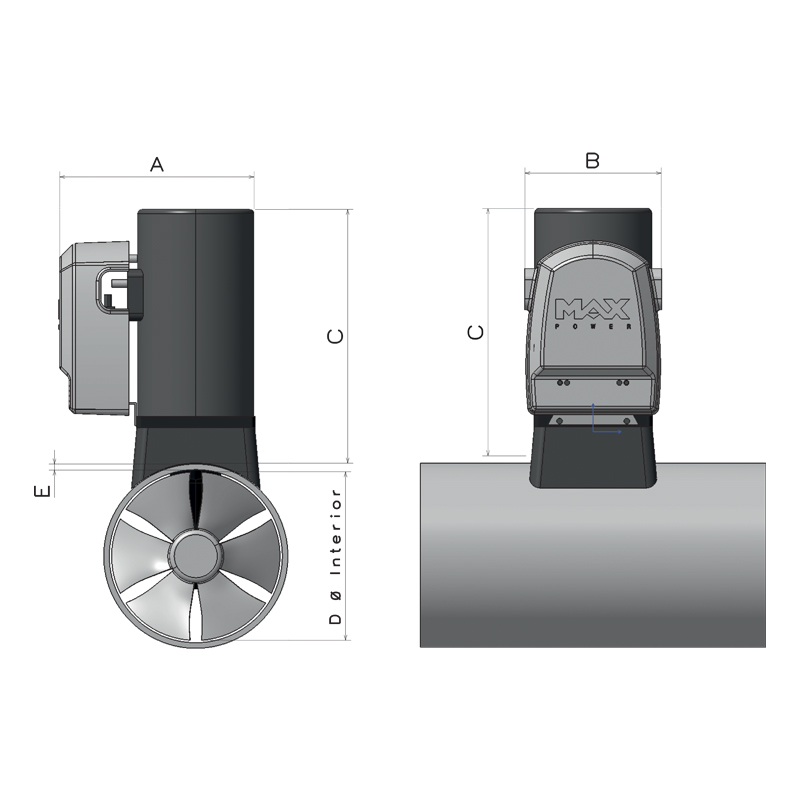

| Code | Voltage | Thrust | Propellers | Power | Weight | A | B | C | D | E | Drive Leg (material) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 42534 | 12V | 96(kg) / 211,2(lbs) | 2 | 7.1(kw) / 9.5(hp) | 24(kg) | 250(mm) | 200(mm) | 356(mm) | 185(mm) | 6 - 7(mm) | Composite |
