This composite, twin propeller, DC tunnel thruster is undeniably the best selling model in the Max Power electric tunnel thruster range. Available in 12V or 24V, the CT80 is perfectly suited to motor yachts and deep footed sailing yachts in the popular 25’-44’ size range.
With its 185mm tunnel diameter and thrust rating up to 65/143 (kg/lbs) on the 12V model, or 80/176 (kg/lbs) on the 24V model, this powerful yet economic thruster integrates all the unique features common to the range and is fitted as standard on a large variety of yachts.
• Patented composite drive legs
• Zero maintenance
• Case hardened spiro-conical gears
• Line shields
• Purpose-built DC motors
• Electronic control boxes for unrivaled safety features
• Safe, high-power connections
• Purpose-built DC contactors with high specifications
* Performance data is given for a thruster installed at an immersion depth of one tunnel’s diameter, in a tunnel no longer than twice the tunnel’s diameter, and this within a variation of + / - 6%. Longer tunnels will result in lower thrust ratings and higher power consumption.

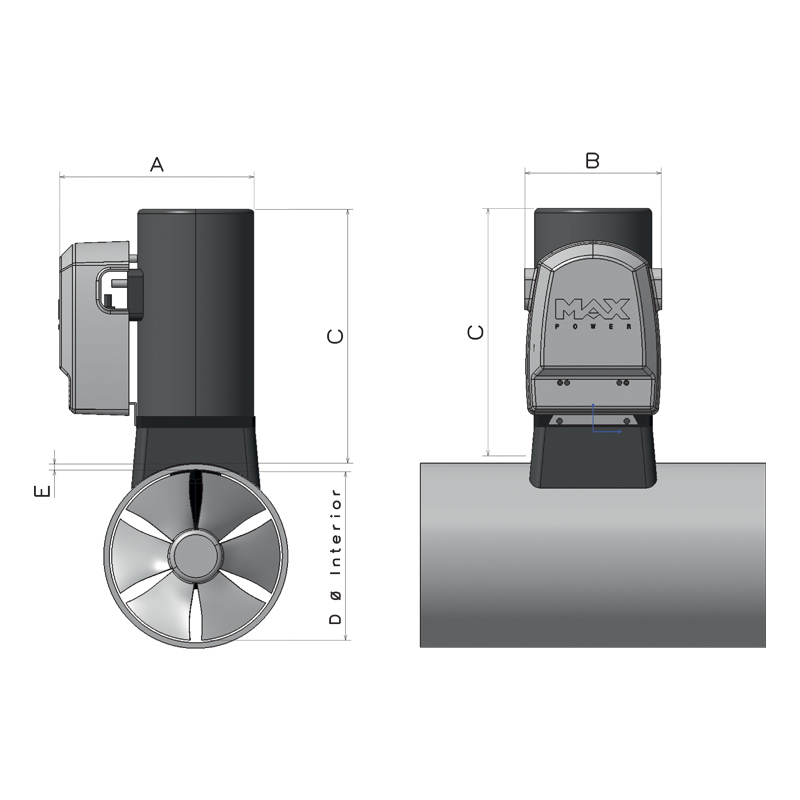

| Code | Voltage | Thrust | Propellers | Power | Weight | A | B | C | D | E | Drive Leg (material) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 42532 | 12V | 75(kg) / 165(lbs) | 2 | 4.79(kw) / 6.4(hp) | 15(kg) | 210(mm) | 140(mm) | 275(mm) | 185(mm) | 6 - 7(mm) | Composite |
| 42533 | 24V | 83(kg) / 182,6lbs) | 2 | 5.28(kw) / 7.1(hp) | 15.1(kg) | 210(mm) | 140(mm) | 275(mm) | 185(mm) | 6 - 7(mm) | Composite |
