Available in 12V or 24V, the CT60 is suited to motor boats and deep footed sailing yachts between 20’-40'.
Manufactured using composite materials, the CT60 is a single propeller thruster with a 185mm diameter tunnel and thrust rating up to 60/132 (kg/lbs) on the 12V model, or 60/143 (kg/lbs) on the 24V model.
Integrating the unique features common to the Max Power electric tunnel thrusters range, the CT60 is fitted as standard on a large variety of yachts.
• Patented composite drive legs
• Zero maintenance
• Case hardened spiro-conical gears
• Line shields
• Purpose-built DC motors
• Electronic control boxes for unrivaled safety features
• Safe, high-power connections
• Purpose-built DC contactors with high specifications
* Thrusters are designed to run at 10.75V on 12V units and 22V on 24V units. Higher voltages will result in higher thrust ratings, higher power consumption, and a reduced duty cycle.
* Performance data is given for a thruster installed at an immersion depth of one tunnel’s diameter, in a tunnel no longer than twice the tunnel’s diameter, and this within a variation of + / - 6%. Longer tunnels will result in lower thrust ratings and higher power consumption.
* Performance data is given for a thruster installed at an immersion depth of one tunnel’s diameter, in a tunnel no longer than twice the tunnel’s diameter, and this within a variation of + / - 6%. Longer tunnels will result in lower thrust ratings and higher power consumption.

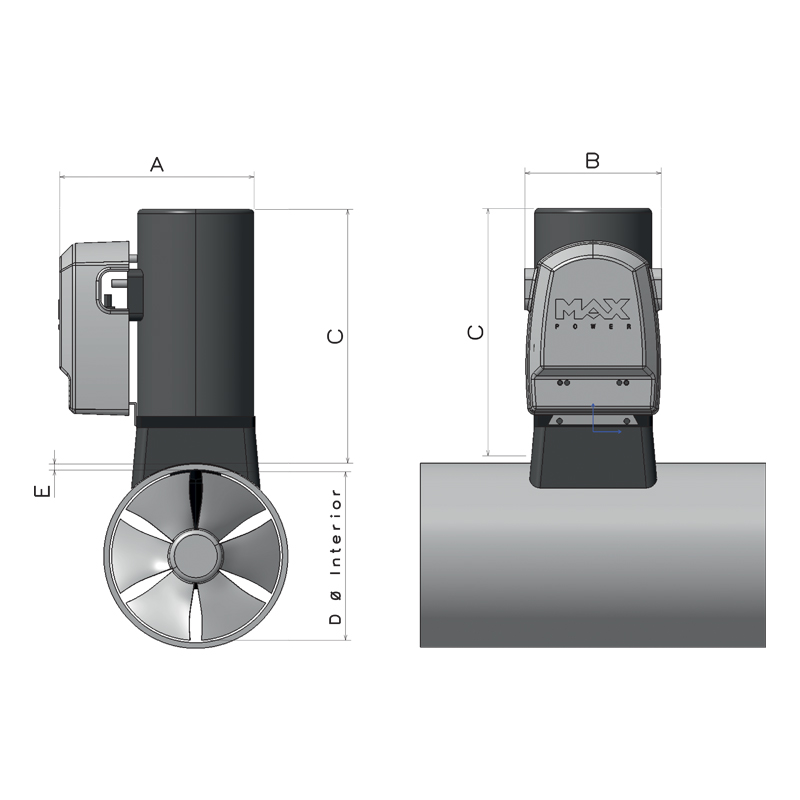

| Code | Voltage | Thrust | Propellers | Power | Weight | A | B | C | D | E | Drive Leg (material) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 42530 | 12V | 63(kg) / 138,6lbs) | 1 | 4.35(kw) / 5.8(hp) | 14.7(kg) | 210(mm) | 140(mm) | 275(mm) | 185(mm) | 6 - 7(mm) | Composite |
| 42531 | 24V | 64(kg) / 143(lbs) | 1 | 4.4(kw) / 5.9(hp) | 14.8(kg) | 210(mm) | 140(mm) | 275(mm) | 185(mm) | 6 - 7(mm) | Composite |
