The CT45 is ideal for motor boats and deep footed sailing yachts ranging from 19’-36'. Manufactured using composite materials, the CT45 has a 125mm diameter tunnel.
As small and compact as the CT35, the CT45 benefits from an increased thrust rating up to 40/88 (kg/lbs) thanks to its twin propellers.
Easy to install and maintenance free, this model integrates all the unique features common to Max Power’s electric tunnel thrusters.
• Patented composite drive legs
• Zero maintenance
• Case hardened spiro-conical gears
• Line shields
• Purpose-built DC motors
• Electronic control boxes for unrivaled safety features
• Safe, high-power connections
• Purpose-built DC contactors with high specifications
* Thrusters are designed to run at 10.75V on 12V units and 22V on 24V units. Higher voltages will result in higher thrust ratings, higher power consumption, and a reduced duty cycle.
* Performance data is given for a thruster installed at an immersion depth of one tunnel’s diameter, in a tunnel no longer than twice the tunnel’s diameter, and this within a variation of + / - 6%. Longer tunnels will result in lower thrust ratings and higher power consumption.
* Performance data is given for a thruster installed at an immersion depth of one tunnel’s diameter, in a tunnel no longer than twice the tunnel’s diameter, and this within a variation of + / - 6%. Longer tunnels will result in lower thrust ratings and higher power consumption.

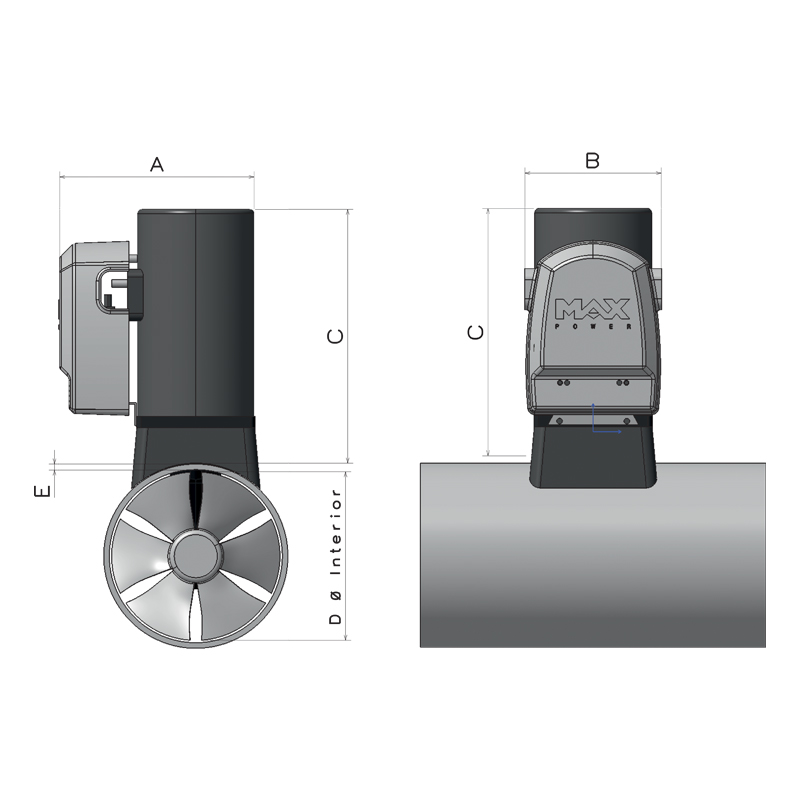

| Code | Voltage | Thrust | Propellers | Power | Weight | A | B | C | D | E | Drive Leg (material) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 317603 | 12V | 40(kg) / 88(lbs) | 2 | 3.23(kw) / 4.3(hp) | 9.65(kg) | 190(mm) | 140(mm) | 210(mm) | 125(mm) | 4 - 5(mm) | Composite |
