Electric Tunnel Thruster CT 35
Home → Tunnel Thrusters → Electric Tunnel Thrusters
- Description
- Images
- Drawings
- Documents
- 3D Models
- Videos
Manufactured using composite materials, the CT35 is a single propeller thruster with a 125mm diameter tunnel and thrust rating up to 35/75 (kg/lbs).
The smallest in the Max Power electric tunnel thruster range, the CT35 is ideally suited to motor boats and deep footed sailing yachts that are between 17’-34'.
Like all Max Power electric tunnel thrusters, the CT35 is easy to install, maintenance free, and integrates all the unique features common to this range.
• Patented composite drive legs
• Zero maintenance
• Case hardened spiro-conical gears
• Line shields
• Purpose-built DC motors
• Electronic control boxes for unrivaled safety features
• Safe, high-power connections
• Purpose-built DC contactors with high specifications
* Thrusters are designed to run at 10.75V on 12V units and 22V on 24V units. Higher voltages will result in higher thrust ratings, higher power consumption, and a reduced duty cycle.
* Performance data is given for a thruster installed at an immersion depth of one tunnel’s diameter, in a tunnel no longer than twice the tunnel’s diameter, and this within a variation of + / - 6%. Longer tunnels will result in lower thrust ratings and higher power consumption.
* Performance data is given for a thruster installed at an immersion depth of one tunnel’s diameter, in a tunnel no longer than twice the tunnel’s diameter, and this within a variation of + / - 6%. Longer tunnels will result in lower thrust ratings and higher power consumption.

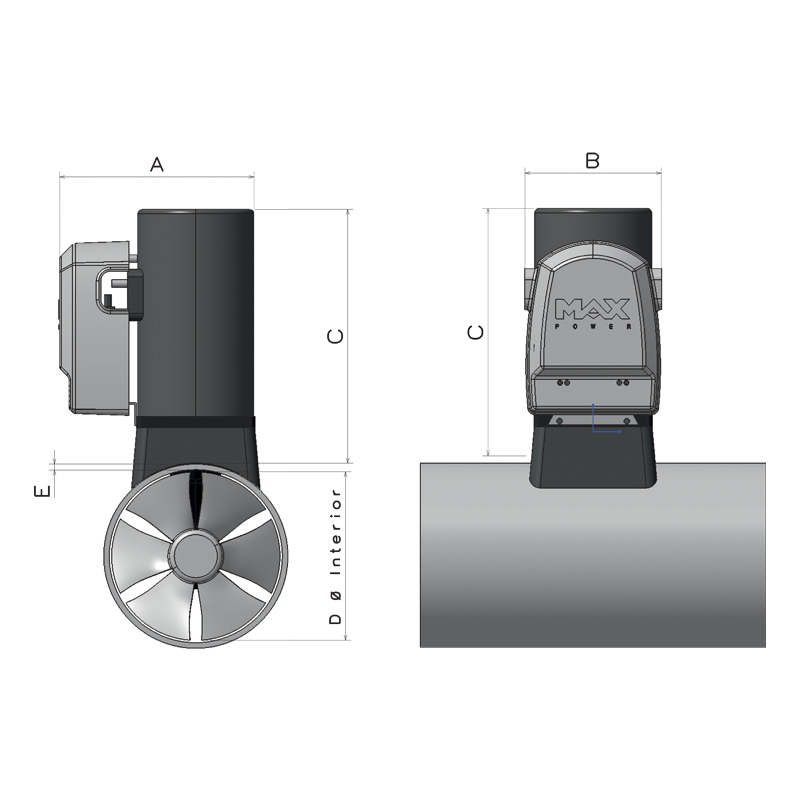

| Code | Voltage | Thrust | Propellers | Power | Weight | A | B | C | D | E | Drive Leg (material) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 42529 | 12V | 35(kg) / 77(lbs) | 1 | 2.69(kw) / 3.6(hp) | 9.6(kg) | 190(mm) | 140(mm) | 210(mm) | 125(mm) | 4 - 5(mm) | Composite |
